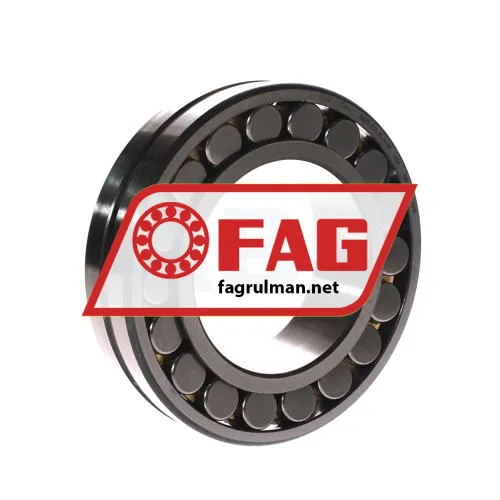

FAG 22217-E1A-XL-K-M

FAG 22217-E1A-XL-K-M
FAG 22217-E1A-XL-K-M rulman resim 1
FAG 22217-E1A-XL-K-M rulman resim 2
FAG 22217-E1A-XL-K-M rulman resim 3
FAG 22217-E1A-XL-K-M rulman resim 4
FAG 22217-E1A-XL-K-M rulman resim 5
FAG 22217-E1A-XL-K-M rulman resim 6
Fiyatı: 4,494.05 ₺
Özellikler
Marka FAG
Ürün No 22217-E1A-XL-K-M FAG
Üretici No 0190168320000
Alternatif Kodu 22217-E1A-K-M
EAN 4026677850416
Kategori Küresel Makaralı
Ağırlık ve Boyutlar
İç (d) MM 85
Dış (D) MM 150
En (B) MM 36
İç (d) Inch 3.3465
Dış (D) Inch 5.9055
En (B) Inch 1.4173
Ağırlık 2.5 kg
Ürün Özellikleri
Sıkıntı K - 1:12 Konik Delik (Çoğu Tip İçin Standart)
Yağlama Enhancement W33 - Lubrication Groove and 3 Holes
Fok Kapaksız
Kasa Tipi M - Prinç Kafes
Radyal İç Oyun Cn Normal İç Oyun
Kesinlik Standart Hassasiyet
Isı Sabitleme Isı Stabilizasyonu Yok - 120 °Cye kadar sıcaklıklar
Vibrating Screen Execution Non Vibrating Screen Execution
Data from Schaeffler (medias)
Genişlik (b) mm 36
Radial Static Load Rating C0r (N) 325000
Radial Dynamic Load Rating Cr (N) 305000
Temel statik yük derecesi, radyal (C 0r) "325000.0000"
Hız sınırlaması (n G) 5700
Referans Hızı (n u03d1r) 3450
ECLASS number 23-05-09-11
ECLASS2 number 23-05-09-11
Medias description Spherical roller bearing 222..-E1A-XL-K-M, symmetric 2 outer ribs
Suffix description
E1 Increased Capacity Design
A Modified Internal Construction
XL X-Life
K Tapered Bore, Taper 1:12
M Solid Brass Cage, Guided By Rollers
