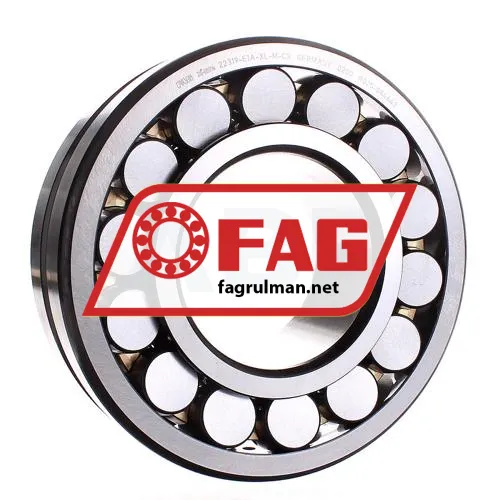

FAG 22319-E1A-XL-M-C3
Fiyatı: 9,431.76 ₺
Özellikler
| Marka | FAG |
| Ürün No | 22319-E1A-XL-M-C3 FAG |
| Üretici No | 0389124900030 |
| Alternatif Kodu |
22319-E1A-M-C3 |
| EAN | 4026677948748 |
| Kategori | Küresel Makaralı |
| İç (d) MM | 95 |
| Dış (D) MM | 200 |
| En (B) MM | 67 |
| İç (d) Inch | 3.7402 |
| Dış (D) Inch | 7.874 |
| En (B) Inch | 2.6378 |
| Ağırlık | 8.2 kg |
| Sıkıntı | C - Silindirik Delik |
| Yağlama Enhancement | W33 - Lubrication Groove and 3 Holes |
| Fok | Kapaksız |
| Kasa Tipi | M - Prinç Kafes |
| Radyal İç Oyun | C3 İç Oyun (Cnden Yüksek) |
| Kesinlik | Standart Hassasiyet |
| Isı Sabitleme | Isı Stabilizasyonu Yok - 120 °Cye kadar sıcaklıklar |
| Vibrating Screen Execution | Non Vibrating Screen Execution |
| Genişlik (b) mm | 67 |
| Radial Static Load Rating C0r (N) | 700000 |
| Radial Dynamic Load Rating Cr (N) | 670000 |
| Temel statik yük derecesi, radyal (C 0r) | "700000.0000" |
| Hız sınırlaması (n G) | 3700 |
| Referans Hızı (n u03d1r) | 2800 |
| ECLASS number | 23-05-09-11 |
| ECLASS2 number | 23-05-09-11 |
| Medias description | Spherical roller bearing 223..-E1A-XL-M, symmetric 2 outer ribs |
| E1 | Increased Capacity Design |
| A | Modified Internal Construction |
| XL | X-Life |
| M | Solid Brass Cage, Guided By Rollers |
| C3 | Internal Clearance Larger Than Normal |
