FAG 6230-J20AA-C3

FAG 6230-J20AA-C3

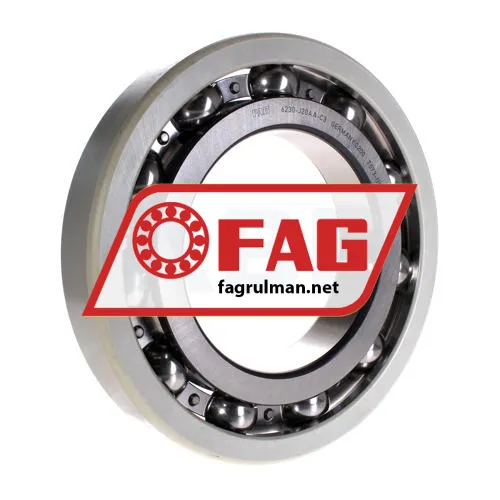

FAG 6230-J20AA-C3 rulman resim 1
FAG 6230-J20AA-C3 rulman resim 2
FAG 6230-J20AA-C3 rulman resim 3
Fiyatı: 30,144.82 ₺
Özellikler
Marka FAG
Ürün No 6230-J20AA-C3 FAG
Üretici No 0390140610030
EAN 4026677986405
Kategori Tek Sıra - Derin Oluklu
Ağırlık ve Boyutlar
İç (d) MM 150
Dış (D) MM 270
En (B) MM 45
İç (d) Inch 5.9055
Dış (D) Inch 10.6299
En (B) Inch 1.7717
Ağırlık 10.4 kg
Ürün Özellikleri
Sıkıntı C - Silindirik Delik
Fok Kapaksız
Kasa Tipi S - Çelik veya Standart Kafes
Dış Modifikasyon Harici Modifikasyon Yok
Radyal İç Oyun C3 İç Oyun (Cnden Yüksek)
Kesinlik Bozulma Voltajı 1000v
Yağlama Standart Yağlama
Isı Sabitleme Isı Stabilizasyonu Yok - 120 °Cye kadar sıcaklıklar
Özel Muamele No Special Treatment
Data from Schaeffler (medias)
Genişlik (b) mm 45
Radial Static Load Rating C0r (N) 168000
Radial Dynamic Load Rating Cr (N) 187000
Temel statik yük derecesi, radyal (C 0r) "168000.0000"
Hız sınırlaması (n G) 3350
Referans Hızı (n u03d1r) 3350
ECLASS number 23-05-08-01
ECLASS2 number 23-05-08-01
Medias description Deep groove ball bearing 62..-J20AA, single row, cf. DIN 625-1
Suffix description
J20AA Coating Which Consists Of Oxide Ceramic, It Is Applied By Plasma Spraying And Then Sealed With Synthetic Resin. Speciality Humid Environments
C3 Internal Clearance Larger Than Normal
