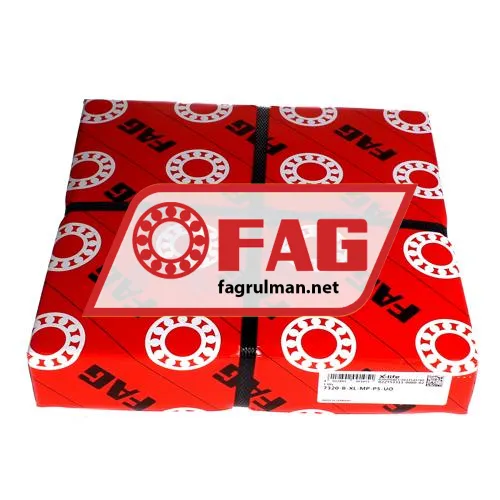

FAG 7320-B-XL-MP-P5-UO
Fiyatı: 24,314.37 ₺
Özellikler
| Marka | FAG |
| Ürün No | 7320-B-XL-MP-P5-UO FAG |
| Üretici No | 0227533110000 |
| Alternatif Kodu |
7320-B-MP-P5-UO |
| EAN | 4012802001051 |
| Kategori | Tek Sıra - Açısal Temaslı |
| İç (d) MM | 100 |
| Dış (D) MM | 215 |
| En (B) MM | 47 |
| İç (d) Inch | 3.937 |
| Dış (D) Inch | 8.4646 |
| En (B) Inch | 1.8504 |
| Ağırlık | 8.39 kg |
| Fok | Kapaksız |
| Kasa Tipi | M - Prinç Kafes |
| Kesinlik | P5 Hassasiyeti (P6dan Yüksek) |
| Contact Angle | 40 degrees |
| Pairing | G - Universal Pairing |
| Axial Internal Clearance / Preload | UO - Zero Clearance |
| Yağlama | Standart Yağlama |
| Genişlik (b) mm | 47 |
| Radial Static Load Rating C0r (N) | 197000 |
| Radial Dynamic Load Rating Cr (N) | 214000 |
| Temel statik yük derecesi, radyal (C 0r) | "197000.0000" |
| Hız sınırlaması (n G) | 5300 |
| Referans Hızı (n u03d1r) | 3550 |
| ECLASS number | 23-05-08-03 |
| ECLASS2 number | 23-05-08-03 |
| Medias description | Angular contact ball bearing 73..-B-XL-MP, single row |
| B | 40° Contact Angle |
| XL | X-Life |
| MP | Machined Brass Cage, Window Type, Rolling Element Riding |
| P5 | Dimensional And Running Accuracy To ISO Tolerance Class 5 |
| UO | Universal Mounting, With O And X Configurations The Bearing Pair Has Zero Clearance |
