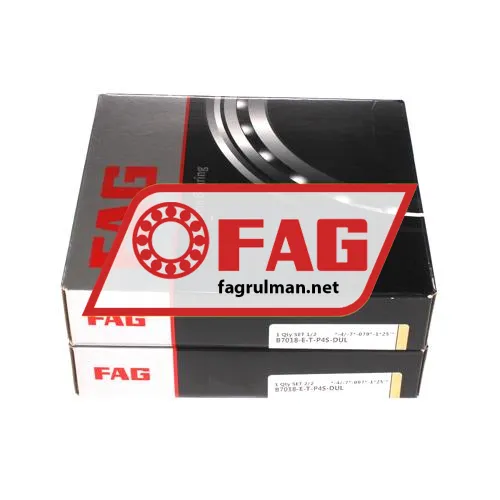

FAG B7018-E-T-P4S-DUL
Fiyatı: 20,771.92 ₺
Özellikler
| Marka | FAG |
| Ürün No | B7018-E-T-P4S-DUL FAG |
| Üretici No | 0191522050000 |
| Alternatif Kodu |
7018ACD/P4ADGA |
| EAN | 4012801451703 |
| Kategori | Tek Sıra - Açısal Temaslı |
| İç (d) MM | 90 |
| Dış (D) MM | 140 |
| En (B) MM | 48 |
| İç (d) Inch | 3.5433 |
| Dış (D) Inch | 5.5118 |
| En (B) Inch | 1.8898 |
| Ağırlık | 2.26 kg |
| Fok | Kapaksız |
| Kasa Tipi | TB - Sert Fiber Kafes |
| Kesinlik | P4S Hassasiyet (P4ten Yüksek) |
| Contact Angle | 25 degrees |
| Pairing | G - Universal Pairing |
| Axial Internal Clearance / Preload | DL - 2 Univ Bearings Light Preload |
| Yağlama | Standart Yağlama |
| Genişlik (b) mm | 24 |
| Radial Static Load Rating C0r (N) | 48500 |
| Radial Dynamic Load Rating Cr (N) | 74000 |
| Temel statik yük derecesi, radyal (C 0r) | "48500.0000" |
| Limiting speed for grease lubrication (n G Grease) | 9000 |
| Limiting speed for oil lubrication (n G Oil) | 14000 |
| ECLASS number | 23-05-08-03 |
| ECLASS2 number | 23-05-08-03 |
| Medias description | Spindle bearings B70..-E, adjusted, in pairs or sets, contact angle a = 25°, restricted tolerances |
| E | 25° Contact Angle |
| T | Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C |
| P4S | Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9 |
| DUL | Set Of 2 Universal Bearings, Light Preload |
