FAG HS7010-C-T-P4S-DUL

FAG HS7010-C-T-P4S-DUL

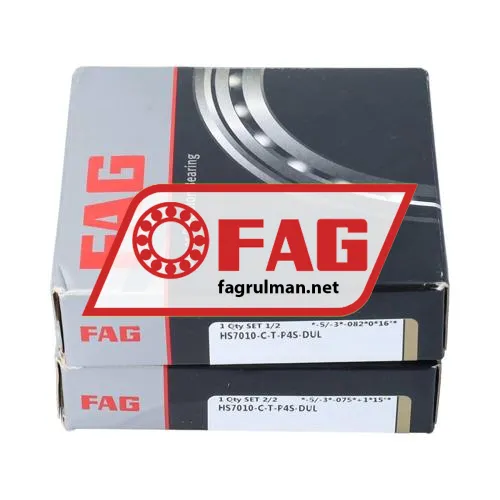

FAG HS7010-C-T-P4S-DUL rulman resim 1
FAG HS7010-C-T-P4S-DUL rulman resim 2
Fiyatı: 10,695.98 ₺
Özellikler
Marka FAG
Ürün No HS7010-C-T-P4S-DUL FAG
Üretici No 0384408300000
EAN 4012801491907
Kategori Tek Sıra - Açısal Temaslı
Ağırlık ve Boyutlar
İç (d) MM 50
Dış (D) MM 80
En (B) MM 32
İç (d) Inch 1.9685
Dış (D) Inch 3.1496
En (B) Inch 1.2598
Ağırlık 0.58 kg
Ürün Özellikleri
Fok Kapaksız
Kasa Tipi TB - Sert Fiber Kafes
Kesinlik P4S Hassasiyet (P4ten Yüksek)
Contact Angle 15 degrees
Pairing G - Universal Pairing
Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
Yağlama Standart Yağlama
Data from Schaeffler (medias)
Genişlik (b) mm 16
Radial Static Load Rating C0r (N) 8200
Radial Dynamic Load Rating Cr (N) 12800
Temel statik yük derecesi, radyal (C 0r) "8200.0000"
Limiting speed for grease lubrication (n G Grease) 24000
Limiting speed for oil lubrication (n G Oil) 38000
ECLASS number 23-05-08-03
ECLASS2 number 23-05-08-03
Medias description Spindle bearings HS70..-C, adjusted, in pairs or sets, contact angle a = 15°, restricted tolerances
Suffix description
C 15° Or 17° Contact Angle
T Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
P4S Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9
DUL Set Of 2 Universal Bearings, Light Preload
