FAG 22210-E1-XL-C5

FAG 22210-E1-XL-C5

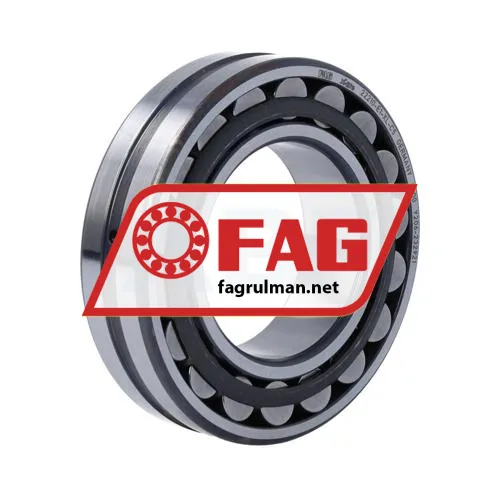

FAG 22210-E1-XL-C5 rulman resim 1
FAG 22210-E1-XL-C5 rulman resim 2
FAG 22210-E1-XL-C5 rulman resim 3
FAG 22210-E1-XL-C5 rulman resim 4
Fiyatı: 1,535.04 ₺
Özellikler
Marka FAG
Ürün No 22210-E1-XL-C5 FAG
Üretici No 0167035290050
Alternatif Kodu 22210-E1-C5
EAN 4026677870391
Kategori Küresel Makaralı
Ağırlık ve Boyutlar
İç (d) MM 50
Dış (D) MM 90
En (B) MM 23
İç (d) Inch 1.9685
Dış (D) Inch 3.5433
En (B) Inch 0.9055
Ağırlık 0.579 kg
Ürün Özellikleri
Sıkıntı C - Silindirik Delik
Yağlama Enhancement W33 - Lubrication Groove and 3 Holes
Fok Kapaksız
Kasa Tipi S - Çelik veya Standart Kafes
Radyal İç Oyun C5 İç Oyun (C4ten Yüksek)
Kesinlik Standart Hassasiyet
Isı Sabitleme Isı Stabilizasyonu Yok - 120 °Cye kadar sıcaklıklar
Vibrating Screen Execution Non Vibrating Screen Execution
Data from Schaeffler (medias)
Genişlik (b) mm 23
Radial Static Load Rating C0r (N) 107000
Radial Dynamic Load Rating Cr (N) 109000
Hız sınırlaması (n G) 9800
Referans Hızı (n u03d1r) 5100
ECLASS number 23-05-09-11
ECLASS2 number 23-05-09-11
Medias description Spherical roller bearings 222..-E1, main dimensions to DIN 635-2
Suffix description
E1 Increased Capacity Design
XL X-Life
C5 Bearing Internal Clearance Greater Than C4
