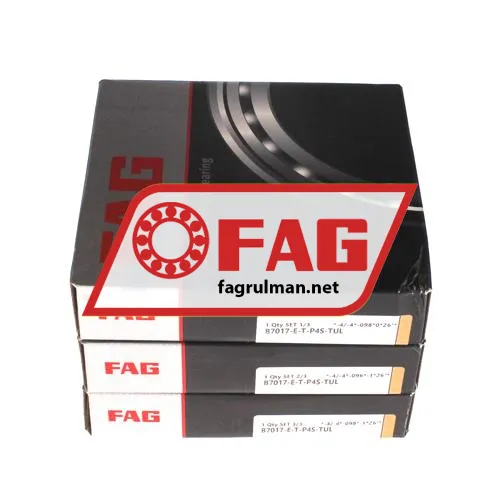

FAG B7017-E-T-P4S-TUL
Fiyatı: 27,411.90 ₺
Özellikler
| Marka | FAG |
| Ürün No | B7017-E-T-P4S-TUL FAG |
| Üretici No | 0386117160000 |
| EAN | 4026677715265 |
| Kategori | Tek Sıra - Açısal Temaslı |
| İç (d) MM | 85 |
| Dış (D) MM | 130 |
| En (B) MM | 66 |
| İç (d) Inch | 3.3465 |
| Dış (D) Inch | 5.1181 |
| En (B) Inch | 2.5984 |
| Ağırlık | 2.64 kg |
| Fok | Kapaksız |
| Kasa Tipi | TB - Sert Fiber Kafes |
| Kesinlik | P4S Hassasiyet (P4ten Yüksek) |
| Contact Angle | 25 degrees |
| Pairing | TU - Tripple Set, Universal, 3 |
| Axial Internal Clearance / Preload | UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements |
| Yağlama | Standart Yağlama |
| Genişlik (b) mm | 22 |
| Radial Static Load Rating C0r (N) | 41500 |
| Radial Dynamic Load Rating Cr (N) | 63000 |
| Temel statik yük derecesi, radyal (C 0r) | "41500.0000" |
| Limiting speed for grease lubrication (n G Grease) | 9500 |
| Limiting speed for oil lubrication (n G Oil) | 15000 |
| ECLASS number | 23-05-08-03 |
| ECLASS2 number | 23-05-08-03 |
| Medias description | Spindle bearings B70..-E, adjusted, in pairs or sets, contact angle a = 25°, restricted tolerances |
| E | 25° Contact Angle |
| T | Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C |
| P4S | Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9 |
| TUL | Set Of 3 Universal Bearings, Light Preload |
