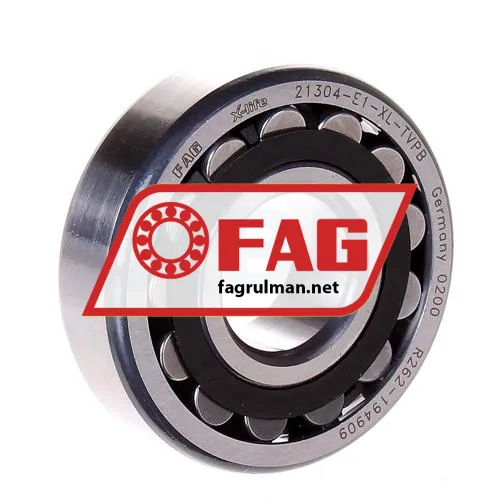

FAG 21304-E1-XL-TVPB
Fiyatı: 1,172.70 ₺
Özellikler
| Marka | FAG |
| Ürün No | 21304-E1-XL-TVPB FAG |
| Üretici No | 0167022040000 |
| Alternatif Kodu |
21304-E1-TVPB |
| EAN | 4026677808080 |
| Kategori | Küresel Makaralı |
| İç (d) MM | 20 |
| Dış (D) MM | 52 |
| En (B) MM | 15 |
| İç (d) Inch | 0.7874 |
| Dış (D) Inch | 2.0472 |
| En (B) Inch | 0.5906 |
| Ağırlık | 0.16 kg |
| Sıkıntı | C - Silindirik Delik |
| Yağlama Enhancement | W33 - Lubrication Groove and 3 Holes |
| Fok | Kapaksız |
| Kasa Tipi | P - Plastik Kalıplı Kafes |
| Radyal İç Oyun | Cn Normal İç Oyun |
| Kesinlik | Standart Hassasiyet |
| Isı Sabitleme | Isı Stabilizasyonu Yok - 120 °Cye kadar sıcaklıklar |
| Vibrating Screen Execution | Non Vibrating Screen Execution |
| Genişlik (b) mm | 15 |
| Radial Static Load Rating C0r (N) | 33000 |
| Radial Dynamic Load Rating Cr (N) | 41000 |
| Temel statik yük derecesi, radyal (C 0r) | "33000.0000" |
| Hız sınırlaması (n G) | 16000 |
| Referans Hızı (n u03d1r) | 9700 |
| ECLASS number | 23-05-09-11 |
| ECLASS2 number | 23-05-09-11 |
| Medias description | Spherical roller bearings 213..-E1, main dimensions to DIN 635-2 |
| E1 | Increased Capacity Design |
| XL | X-Life |
| TVPB | Solid Window Cage Made From Glass Fibre Reinforced Polyamide, Guidance On Inner Ring |
