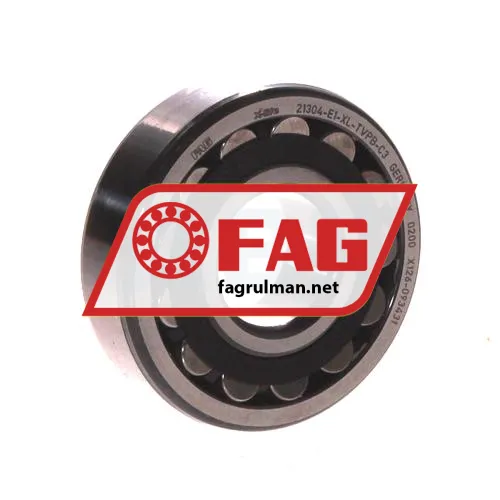

FAG 21304-E1-XL-TVPB-C3
Fiyatı: 1,172.70 ₺
Özellikler
| Marka | FAG |
| Ürün No | 21304-E1-XL-TVPB-C3 FAG |
| Üretici No | 0167022040030 |
| Alternatif Kodu |
21304-E1-TVPB-C3 |
| EAN | 4026677808103 |
| Kategori | Küresel Makaralı |
| İç (d) MM | 20 |
| Dış (D) MM | 52 |
| En (B) MM | 15 |
| İç (d) Inch | 0.7874 |
| Dış (D) Inch | 2.0472 |
| En (B) Inch | 0.5906 |
| Ağırlık | 0.16 kg |
| Sıkıntı | C - Silindirik Delik |
| Yağlama Enhancement | W33 - Lubrication Groove and 3 Holes |
| Fok | Kapaksız |
| Kasa Tipi | P - Plastik Kalıplı Kafes |
| Radyal İç Oyun | C3 İç Oyun (Cnden Yüksek) |
| Kesinlik | Standart Hassasiyet |
| Isı Sabitleme | Isı Stabilizasyonu Yok - 120 °Cye kadar sıcaklıklar |
| Vibrating Screen Execution | Non Vibrating Screen Execution |
| Genişlik (b) mm | 15 |
| Radial Static Load Rating C0r (N) | 33000 |
| Radial Dynamic Load Rating Cr (N) | 41000 |
| Temel statik yük derecesi, radyal (C 0r) | "33000.0000" |
| Hız sınırlaması (n G) | 16000 |
| Referans Hızı (n u03d1r) | 9700 |
| ECLASS number | 23-05-09-11 |
| ECLASS2 number | 23-05-09-11 |
| Medias description | Spherical roller bearings 213..-E1, main dimensions to DIN 635-2 |
| E1 | Increased Capacity Design |
| XL | X-Life |
| TVPB | Solid Window Cage Made From Glass Fibre Reinforced Polyamide, Guidance On Inner Ring |
| C3 | Internal Clearance Larger Than Normal |
FAG 21304-E1-XL-TVPB
0.16 kg
20x52x15 mm
FAG 20304-TVP
0.158 kg
20x52x15 mm
FAG 21304-E1-TVPB-C3
0.16 kg
20x52x15 mm
FAG 21304E1TVPB-C3
0.16 kg
20x52x15 mm
FAG 20304MB
0.152 kg
20x52x15 mm
FAG 21304E-TVPB
0.16 kg
20x52x15 mm
FAG 21304-E1-TVPB
0.16 kg
20x52x15 mm
FAG 21304E1TVPB
0.16 kg
20x52x15 mm
FAG 20304T
0.158 kg
20x52x15 mm
FAG 21304E
0.16 kg
20x52x15 mm
FAG 21304TV
0.16 kg
20x52x15 mm
FAG 21304K
0.16 kg
20x52x15 mm
FAG 20304MB-C3
0.152 kg
20x52x15 mm
FAG 21304E1TVP
0.16 kg
20x52x15 mm
FAG 20304M-C3
0.152 kg
20x52x15 mm
FAG 21304EA-M
0.16 kg
20x52x15 mm
FAG 20304-MB
0.152 kg
20x52x15 mm
