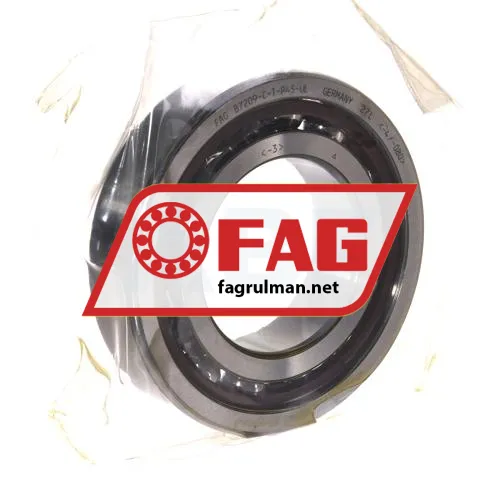

FAG B7209-C-T-P4S-UL
Fiyatı: 4,992.21 ₺
Özellikler
| Marka | FAG |
| Ürün No | B7209-C-T-P4S-UL FAG |
| Üretici No | 0167276650000 |
| Alternatif Kodu |
7209CDGA/P4A |
| EAN | 4012801462020 |
| Kategori | Tek Sıra - Açısal Temaslı |
| İç (d) MM | 45 |
| Dış (D) MM | 85 |
| En (B) MM | 19 |
| İç (d) Inch | 1.7717 |
| Dış (D) Inch | 3.3465 |
| En (B) Inch | 0.748 |
| Ağırlık | 0.4 kg |
| Fok | Kapaksız |
| Kasa Tipi | TB - Sert Fiber Kafes |
| Kesinlik | P4S Hassasiyet (P4ten Yüksek) |
| Contact Angle | 15 degrees |
| Pairing | G - Universal Pairing |
| Axial Internal Clearance / Preload | UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements |
| Yağlama | Standart Yağlama |
| Genişlik (b) mm | 19 |
| Radial Static Load Rating C0r (N) | 17700 |
| Radial Dynamic Load Rating Cr (N) | 34000 |
| Temel statik yük derecesi, radyal (C 0r) | "17700.0000" |
| Limiting speed for grease lubrication (n G Grease) | 17000 |
| Limiting speed for oil lubrication (n G Oil) | 28000 |
| ECLASS number | 23-05-08-03 |
| ECLASS2 number | 23-05-08-03 |
| Medias description | Spindle bearings B72..-C, adjusted, in pairs or sets, contact angle a = 15°, restricted tolerances |
| C | 15° Or 17° Contact Angle |
| T | Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C |
| P4S | Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9 |
| UL | Single Bearing, Universal, Light Preload |
